FTDI specific programmer

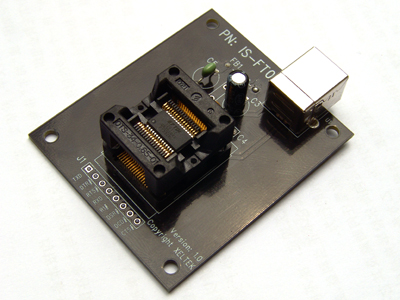

Ftdi Specific Isp Programmer Superpro Ft01
 |
Features:
SUPERPRO ® /FT01 FTDI specific programmer,for FTDI USB interface MCU program.
Features
1） Supports FT245B, FT245R,FT245L , FT232B，FT232H，FT232L，FT232R, FT2232D,FT2232H, FT4232H,FT8U100AX,FT8U232AM,FT8U245AM.
2） Supports direct file programming. No need for manual bit setting.
3） Rescue programming. VID and PID recovery supported.
4） USB interface. Powered by USB.
5） Supports ISP and off-line programming. SSOP, QFN and QFP socket available.
Electrical and Mechanical specifications:
PC interface： USB2.0(high)
Dimensions：50 x 50 x 20 (mm); Weight：200g
Working Temperature：32-104°F. humidity range：20%-80%
Standard Package
SUPERPRO ® /FTDI 1 set，USB Cable * 1, USB key *1
Order Information
Model: FT01-SSOP, with SSOP28 socket.
Model: FT01-QFN, with QFN32 socket.
Model: FT01-QFP, with QFP socket。
- All orders received before noon Beijing Time will begin processing the same business day.
Device Updates:
- XELTEK updates software and device algorithm regularly.
- View the latestDevice List .
- Download the current software version free of charge .
- Updates are available by mail at a nominal charge.
- XELTEK also adds devices upon customer's request at its option.
- Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase.
- Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 8:30am to 5:30pm (Beijing Time).
- Supported devices: SUPPORT FT245R,FT245L,FT232R,FT232L,etc.
- Packages supported: QFN32,SSOP28,QFP, all of FT245R,FT245L,FT232R,FT232L package is supported.
- PC interface: USB2.0,
- Stand-alone Feature: None
- Electrical spec. of the AC adapter: AC 100-240V , output USB供电; power:-W
- Mechanical parameter: Main unit: Size: 52 x 61 x 18 mm Weight: 0.095Kg.
- Packing Box: Size 220x180x75 mm Weight: 0.125 Kg.
