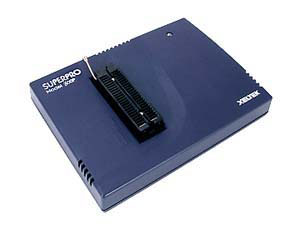

USB Interfaced Ultra-high Device Programmer
Economy Universal Programmer Superpro 610p
 |
- Until now,Support 247
IC manufacturer, 34126
pcs devices and keeps growing.
- Support devices with Vcc from 1.2V to 5V.
- Extremely fast speed hign than SUPERPRO/500P.
- Built with 48 universal pin-drivers.
- PC hosted mode and stand-alone mode. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip.
- Only IC manufacturer approved programming algorithms are used for high reliability. (+5%~-5%) and (10%~-10%) Vcc verification enhances programming reliability.
- Advanced and powerful functions.
Production mode start chip operation at the moment the chip is inserted in the socket properly.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
Password can be set for project files and production volume control
Batch command combines device operations like program, verify, security into a single command at any sequence.
Serial numbers generators are available as standard or customer-specific functions.
Log file is useful for quality tracking.
- Over-current and over-voltage protection for safety of the chip and programmer hardware.
- WINDOWS XP/Vista compatibility/Win7/Win10
Features:
| Device | P+V(s) | Compare with SP3000U | type |
| AT28C64B | 0.8(P)+0.1(V)= 0.9(s) | 1.2(P)+0.8(V)= 2.0(s) | 64Kb EEPROM |
| 24AA128 | 2.7(P)+1.8(V)= 4.5(s) | 5.0(P)+4.0(V)= 9.0(s) | 128Kb 串行EEPROM |
| QB25F640S33B60 | 29.0(P)+14.4(V)= 43.4(s) | 55.2(P)+41.4(V)= 96.6(s) | 64Mb 串行EEPROM |
| AT89C55WD | 2.5(P)+0.4(V)=2.9(s) | 3.3(P)+1.0(V)=4.3(s) | 20KB FLASH MCU |
| S25FL064A | 43.9(P)+14.7(V)= 58.6(s) | 72.8(P)+41.4(V)= 114.2(s) | 64Mb SPI EEPROM |
| PIC16F876A | 10.1(P)+0.8(V)=10.9(s) | 22.1(P)+06.2(V)=28.3(s) | |
| PIC18F442 | 5.1(P)+1.1(V)=6.2(s) | 13.6(P)+06.7(V)=20.3(s) |
- All orders received before noon Beijing Time will begin processing the same business day.
Device Updates:
- XELTEK updates software and device algorithm regularly.
- View the latestDevice List .
- Download the current software version free of charge .
- Updates are available by mail at a nominal charge.
- XELTEK also adds devices upon customer's request at its option.
- Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase.
- Online Technical Support is also available 24 hours or you may call us during our business hours through Friday 8:30am to 5:30pm (Beijing Time).
- Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU.
- Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, CSP, SCSP , ...
- PC interface: USB2.0
- Stand-alone Feature: None
- Electrical spec. of the AC adapter: AC 100-240V , output 12V/2A; power:15W
- Mechanical parameter: Main unit: Size: 178*130*40 mm Weight: -Kg.
- Packing Box: Size 320*300*85 mm Weight: 1.8 Kg.
- Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, software CD (include: install software, user manual), register card
- Optional accessories: adaptor in varies packages.
